SPECIFICATIONS
MODEL	Ingressus I	Ingressus II	Ingressus IV
BASIC
• Dimension (L X W X H), mm	186 x 106 x 36		226 x 106 x 36
• Power input (V)	12V DC
• Operating temperature (°C)	0 - 55
• Operating humidity (%)	10 - 80
• CPU	32-bit, 400MHz
• Flash Memory (MB)	128
• SDRAM (MB)	32
• Polarity protection	Yes
STORAGE
• Fingerprint	3000
• Cards	30000
• Passwords	30000
• Transactions	100000
COMMUNICATIONS
• Communications with Server	TCP/IP, RS485
• Quantity of terminal	2	4	4
• Communication with terminals	2 x 26-bit Wiegand input. Each for 1 slave terminal (1 x RS485 input to support RS485 network) (max 2 units)	4 x 26-bit Wiegand input. Each for 1 slave terminal (1 x RS485 input to support RS485 network) (max 4 units)	4 x 26-bit Wiegand input. Each for 1 slave terminal (1 x RS485 input to support RS485 network) (max 8 units)
INPUT
• Push release button	1	2	4
• Door sensor	1	2	4
• AUX	1	2	4
• Types of AUX input supported	Motion detector, passive DIR detector, curtain passive infrared detector, pet immunity PIR detector, two beam digital active infrared detector, heat detector
OUTPUT
• Door lock (12VDC 10A form C relay)	1	2	4
• AUX output (30VDC 2A Form C relay)	1	2	4
• Types of AUX output supported	Gas detector and compatible sensors, piezo strobe siren, electronic siren

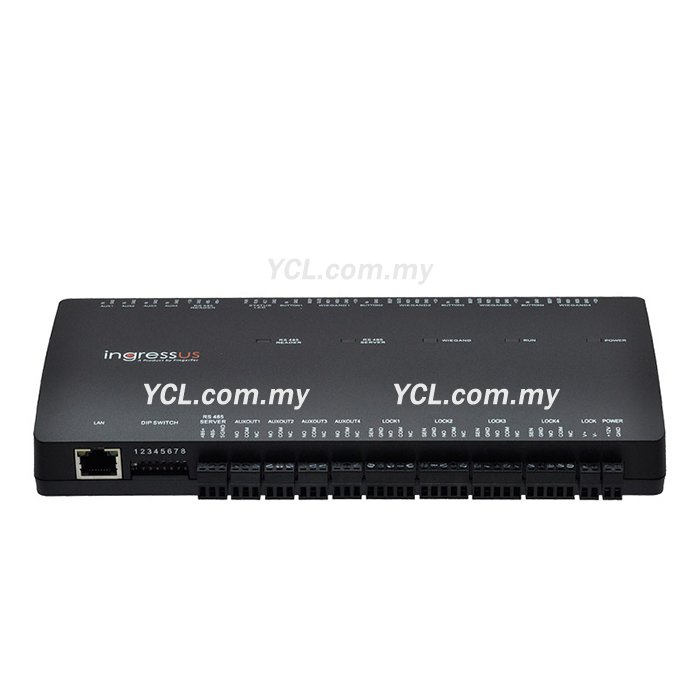

FINGERTEC Time Attendance Ingressus IV
